DC solar cables for rooftop, commercial and agricultural photovoltaic systems, made to IS 17293:2020 with a tinned copper conductor and UV-resistant sheath.

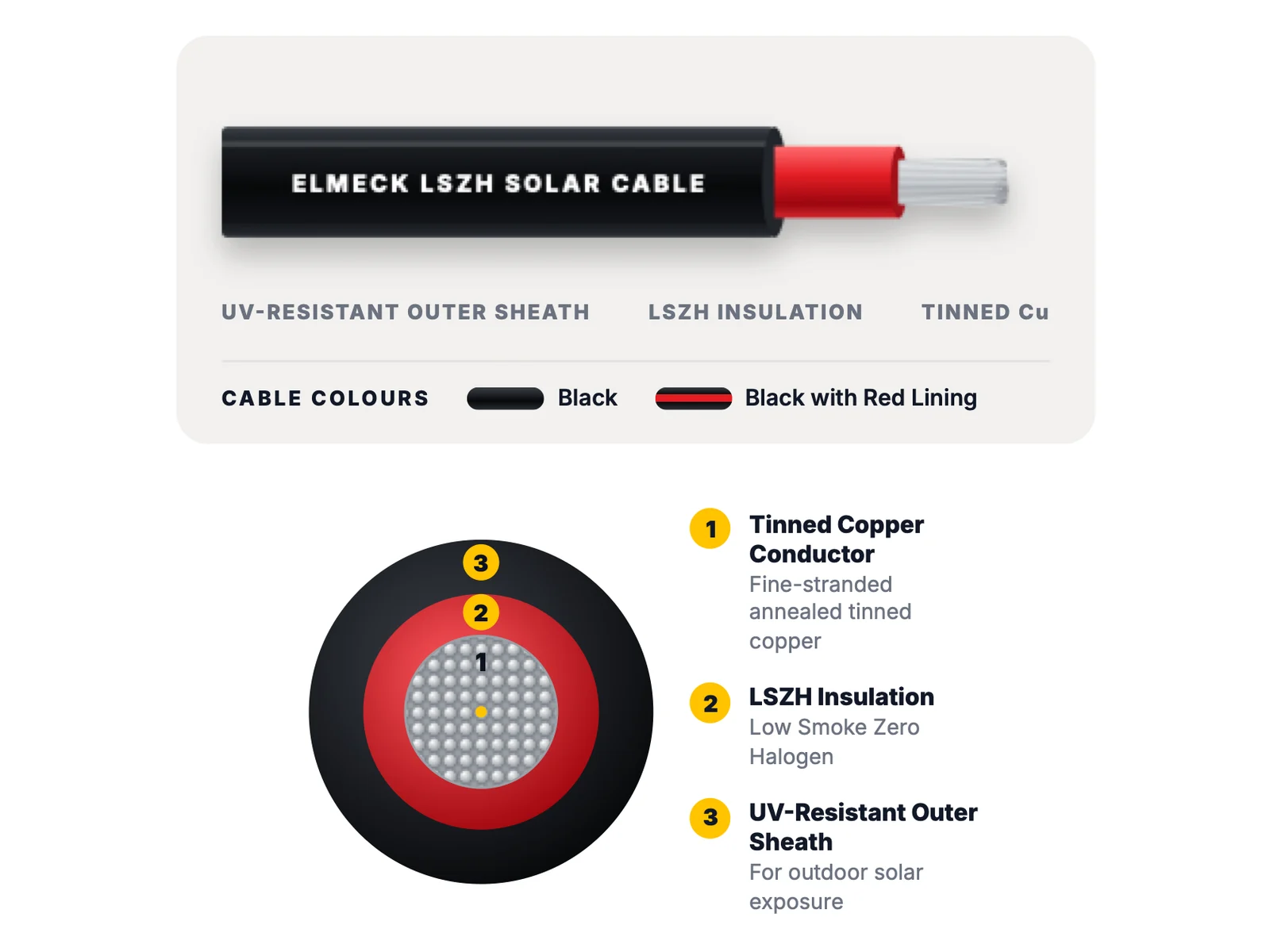

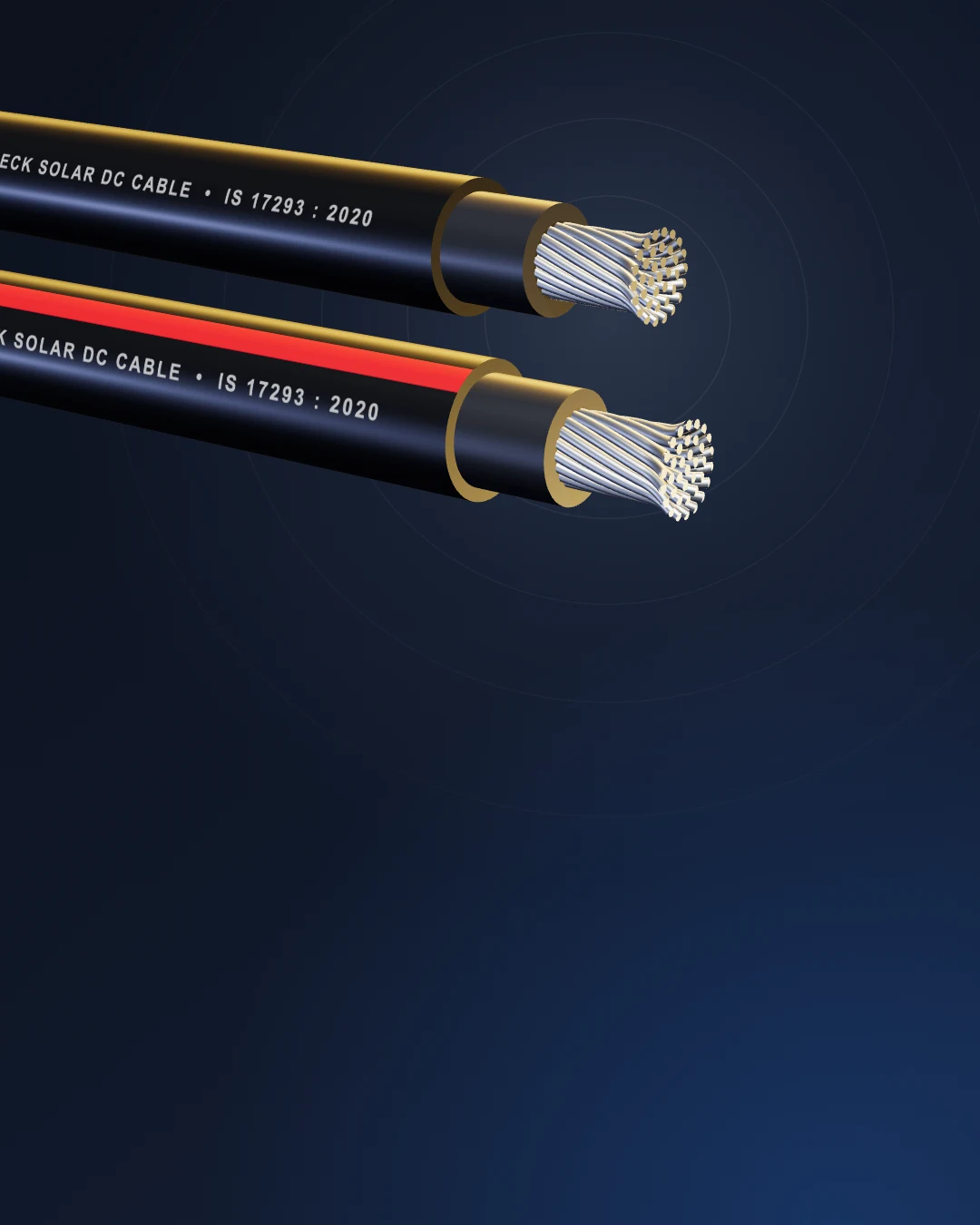

Solar DC cable for the electrical interconnection of photovoltaic systems — between PV panels and modules, and from panels to string boxes and inverters. Manufactured in accordance with IS 17293:2020 (Solar DC Cables) with a fine-stranded annealed tinned copper conductor, LSZH insulation and a UV-resistant outer sheath for outdoor exposure.
Ask our team for the latest datasheet and confirmation of specifications, certificate scope, and availability for your selected range.
Buying Guides
Understand the difference between alternating current and direct current.
Learn how to calculate voltage drop for single-phase and three-phase circuits. Includes worked examples, conductor resistance tables, and IS 732 compliance limits.
FAQs
Elmeck Solar Cable is manufactured in accordance with IS 17293:2020 — Solar DC Cables. Under the Quality Control Order on DC solar cables issued on 24 August 2023, DC solar cables sold in India must conform to IS 17293 and carry the BIS Standard Mark. Ask Elmeck for the current BIS licence details for the size you are buying.
It is used for the electrical interconnection of photovoltaic (PV) systems: between PV panels and modules, and from panels to string boxes and inverters. It suits residential and commercial rooftop solar, agricultural and other PV installations, indoors or outdoors, in fixed and free-hanging installations.
Elmeck Solar Cable is available in 2.5, 4, 6 and 10 sq mm, in black and in black with red lining. The technical datasheet on this page lists the insulation and sheath thickness, cable diameter, current rating and maximum conductor resistance for each size.
It depends on how the cable is installed. Per the Elmeck datasheet, 4 sq mm is rated at 52 A as a single cable free in air, 49 A as a single cable on a surface and 41 A for two loaded cables touching on a surface; 6 sq mm is rated at 66 A, 63 A and 53 A for the same conditions. Have a qualified installer size the cable for your system's current, run length and voltage drop.
Prices depend on the size, colour and order quantity. Contact Elmeck on WhatsApp (+91-9311152255) or at [email protected] for current pricing, dealer availability and bulk orders.
Talk directly to our sales team via WhatsApp or phone for pricing, bulk orders, and technical guidance.
